In our constantly growing portfolio, you are sure to find the right spray gun for your application. For example, for spraying internal diameters or spraying parts with unusual geometries, you can also count on the support of TPS in selecting the suitable spray gun. Of course, we can also adapt or extend our spray guns to meet your individual requirements. Here is a selection of the most popular models.
Application: General Industry/Aircraft/LBGT/Medical/other
Performance max: 55KW
Gases: Ar/Ar+H2/Ar+N2/Ar+He/N2
Powder: Metal/Alloy/Carbide/Ceramic/Composite
Application: General Industry/Aircraft/LBGT/Medical/other
Performance max: 55KW
Gases: Ar/Ar+H2/Ar+N2/Ar+He/N2
Powder: Metal/Alloy/Carbide/Ceramic/Composite
Application: General Industry/Aircraft/LBGT/ Medical/ other
Performance max: 55KW
Gases: Ar/Ar+H2/Ar+N2/Ar+He/N2
Powder: Metal/Alloy/Carbide/Ceramic/ Composite
Application: General Industry/Aircraft/LBGT/Medical/other
Performance max: 60KW
Gases: Ar/Ar+H2/Ar+N2/Ar+He/N2
Powder: Metal/Alloy/Carbide/Ceramic/ Composite
Application: General Industry/Aircraft/LBGT/
Medical/other
Performance max: 25KW
Gases: Ar/Ar+H2/Ar+N2/Ar+He/N2
Powder: Metal/Alloy/Carbide/Ceramic/Composite
Application: General Industry/Aircraft/LBGT/
Medical/other
Performance max: 25KW
Gases: Ar/Ar+H2/Ar+N2/Ar+He/N2
Powder: Metal/Alloy/Carbide/Ceramic/Composite
Application: General Industry/Aircraft/LBGT/other
Performance max: 15KW
Gases: Ar/Ar+H2/Ar+He
Powder: Metal/Alloy/Carbide/Ceramic/Composite
Application: General Industry/Aircraft
Performance max: 113KW
Gases: H2/Oxygen - Oxygen/Propane
Powder: Metal/Alloy/Carbide/Composite
The design of the powder feeder with precise rotating disc technology in combination with agitators ensures a uniform powder flow carried by the carrier gas (Ar, N2). The carrier gas flow is controlled with highly accurate mass flow controllers.
Powder pots
We offer four different powder pots for our powder modules. 1.1, 1.5, 3.0 and 5 litres. To ensure that there is no big loss of time when changing the powder pots, the pots are fastened with quick-release fasteners. This allows you to change the pots in a few minutes so that you can use the right powder pot for every application.
Dosing
The powder pots can be equipped with different suction and scraper sets. L (liquid) for powders that flow well and NL (non-liquid) for powders that do not flow themselves. For the correct dosage, you then only need the right dosing disc. For the selection of the right dosing disc, the desired flow rate and the powder used are decisive.
Pot heating
Do you have problems with damp powder? All our pots are also available with a heating mantle or heating tape. The heating prevents excessive moisture in the powder pot.

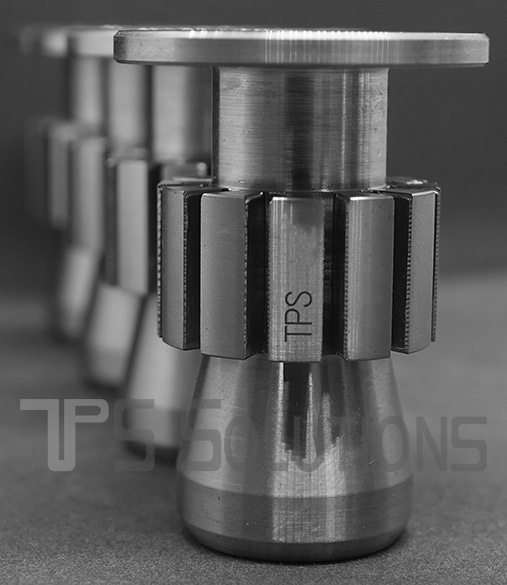

We offer a wide range of premium quality nozzles and electrodes for most common plasma torches. We use environmentally friendly, thorium-free plasma spray electrodes made of tungsten lanthanum (WL10). Our nozzles and electrodes convince with the following properties:
• Outstanding ignition properties
• Less wear
• Continuous coating quality
